Vicente Louvet III

Hardware Required

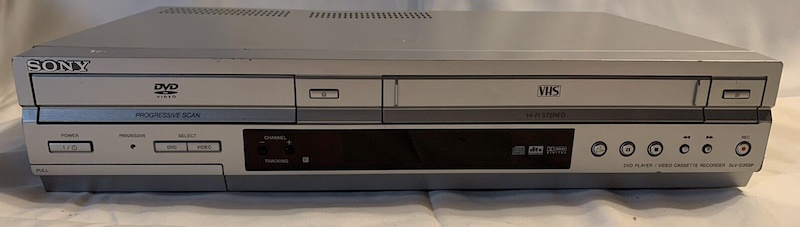

1. VCR or VCR/DVD Combo unit (Using Sony SLV-D350 for this guide)

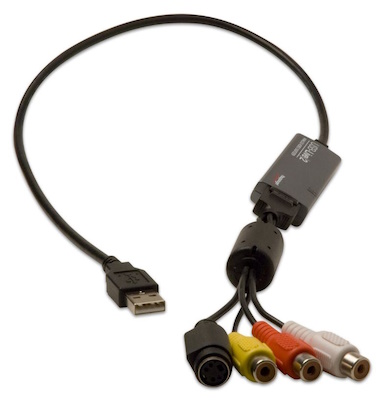

1. Hauppauge USB-Live 2 (or other analog capture device)

1. RCA Y-W-R A/V cables

1. Computer with H264 encoding

Software Required

1. Linux - Ubuntu 22.04 (Other Linux distributions may work)
2. ffmpeg
3. v4l2
4. vlc

setup process

1. Install required tools and libraries

    sudo apt install -y ffmpeg vlc v4l2


Commands Used

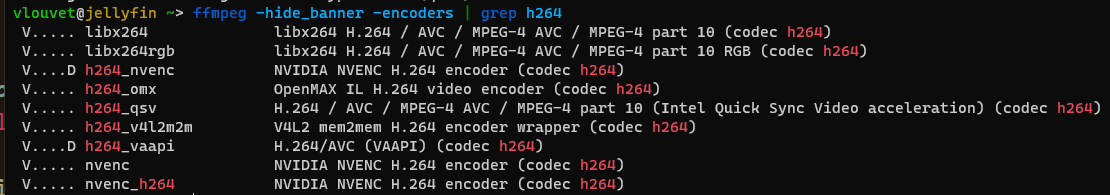

1. confirm your computer supports hardware accelerated h264 encoding.

    ffmpeg -hide_banner -encoders | grep h264


2. query the v4l2 devices available. (Plug in your capture device into the USB Port first!)

    v4l2-ctl --list-dev


3. Query the device’s video standard

    v4l2-ctl -d /dev/video4 --get-standard


   Response: Video Standard = 0x0000b000 NTSC-M/M-JP/M-KR

4. If the device is not using the NTSC video standard use the following command to switch it:

    v4l2-ctl -d /dev/video4 -s ntsc


5. Use ffmpeg to save the A/V stream from capture device to file AND play on VLC

    ffmpeg -f alsa -hwaccel auto -i hw:1 -f video4linux2 -i /dev/video4 -tune film -r:v ntsc -t 2:50:00 -f matroska pipe:1 MOVIE_NAME.mp4 | vlc -


• -f alsa: Specifies the input format as ALSA audio.
• -hwaccel auto: Automatically selects a suitable hardware acceleration method.
• -i hw:1: Sets the input audio source to the ALSA device “hw:1”.
• -f video4linux2: Specifies the input format as Video4Linux2.
• -i /dev/video4: Sets the input video source to “/dev/video4”.
• -tune film: Applies video settings optimized for film content.
• -r:v ntsc: Sets the video output frame rate to NTSC standard.
• -t 2:50:00: Specifies a duration of 2 hours, 50 minutes, and 0 seconds.
• -f matroska: Sets the output format as Matroska container.
• pipe:1: Sends the output to the standard output (stdout).
• MOVIE_NAME.mp4: Specifies the output file name as “MOVIE_NAME.mp4”.
• | vlc -: Pipes the output to the VLC media player for playback.

Additional Resources

1. The information in this guide builds upon the resources availabe on the following site: http://www.tedfelix.com/linux/hauppauge-usb-live-2-linux.html

2. ffmpeg configuration options for hardware acceleration can be found at this site: FFmpeg HWAccel WiKi
